New Showcase » Honda » ST1300 ABS
Model Quick Search

$17,199.00

2009 Honda ST1300 ABS
Request a Quote Financing Calculator Request a Brochure Financing Form

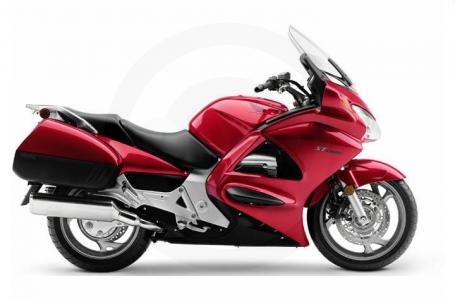

Click here to view full image.
Candy Dark Red/Metallic Silver
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Building a motorcycle that’s part supersport performer and part long-distance tourer is no easy feat. Satisfying the rider who demands an impeccable combination of both can be even harder. Which is why for years serious sport-touring pilots have turned to one machine: Honda’s ST1300. Inspired by our class-leading Gold Wing and CBRs, the ST1300 seamlessly pairs comfort—sleek, wind-cheating bodywork, huge, detachable saddlebags, an electronically adjustable windscreen—with a powerful V-4 engine and lightweight chassis delivering performance usually reserved for the sportbike set. Exactly the kind of class-leading machine you can count on from Honda.

    ENGINE
    • Engine Type: 1261cc liquid-cooled longitudinally mounted 90° V-4
    • Bore and Stroke: 78mm x 66mm
    • Induction: PGM-FI with automatic enricher circuit, four-36mm throttle bodies, 8 holes per injector
    • Ignition: Computer-controlled digital with three-dimensional mapping and electronic advance
    • Compression Ratio: 10.8:1
    • Valve Train: DOHC; four valves per cylinder
    DRIVE TRAIN
    • Transmission: Five-speed
    • Final Drive: Shaft
    CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: 45mm HMAS cartridge fork; 4.6 inches travel
    • Rear Suspension: HMAS gas-charged single shock with five-position spring-preload adjustability; 4.8 inches travel
    • Front Brake: Dual full-floating 310 mm discs with LBS three-piston calipers
    • Rear Brake: Single 316 mm disc with LBS three-piston caliper, ABS Brakes
    • Front Tires: 120/70ZR-18
    • Rear Tires: 170/60ZR-17
    DIMENSIONS
    • Rake: 26.0° Caster Angle
    • Trail: 98mm (3.9 inches)
    • Wheelbase: 58.7 inches
    • Seat Height: 31.1 inches (+/- 0.6 inches)
    • Curb Weight: 730 pounds
    • Fuel Capacity: 7.7 gallons
    FACTORY WARRANTY INFORMATION
    • Three Years: Unlimited Mileage

    Specifications

    Engine
    Engine Type Longitudinally mounted 90° V-4
    Displacement 1261 cc
    Bore and Stroke 78 x 66 mm
    Cooling Liquid-cooled
    Compression Ratio 10.8:1
    Fuel System PGM-FI with automatic enricher circuit, four-36 mm throttle bodies, 8 holes per injector
    Ignition Computer-controlled digital with three-dimensional mapping and electronic advance
    Chassis
    Front Suspension 45 mm HMAS cartridge fork; Travel: 4.6 in.
    Front Brakes Dual full-floating 310 mm discs with LBS three-piston calipers
    Front Tire 120/70ZR-18
    Rear Suspension HMAS gas-charged single shock with five-position spring-preload adjustability; Travel: 4.8 in.
    Rear Brakes Single 316 mm disc with LBS three-piston caliper, ABS Brakes
    Rear Tire 170/60ZR-17
    Dimensions
    Dry Weight 730 lbs.
    Fuel Capacity 7.7 gal.
    Wheelbase 58.7 in.
    Seat Height 31.1 in. (+/- .6 in.)
    Trail 3.9 in. (98 mm)
    Rake 26.0° Caster Angle
    Transmission
    Transmission Five-speed
    Final Drive Shaft
    General
    Colors Red
    Warranty Three Years: Unlimited Mileage

    Compare Models

    		 Print








    Year 2009
    Manufacturer Honda
    Model ST1300 ABS
    Style Sport Touring
    MSRP* $17,199.00
    Chassis
    Front Suspension 45 mm HMAS cartridge fork; Travel: 4.6 in.
    Front Brakes Dual full-floating 310 mm discs with LBS three-piston calipers
    Front Tire 120/70ZR-18
    Rear Suspension HMAS gas-charged single shock with five-position spring-preload adjustability; Travel: 4.8 in.
    Rear Brakes Single 316 mm disc with LBS three-piston caliper, ABS Brakes
    Rear Tire 170/60ZR-17
    Dimensions
    Dry Weight 730 lbs.
    Fuel Capacity 7.7 gal.
    Wheelbase 58.7 in.
    MPG
    Seat Height 31.1 in. (+/- .6 in.)
    Trail 3.9 in. (98 mm)
    Rake 26.0° Caster Angle
    Engine
    Engine Type Longitudinally mounted 90° V-4
    Displacement 1261 cc
    Bore and Stroke 78 x 66 mm
    Cooling Liquid-cooled
    Compression Ratio 10.8:1
    Fuel System PGM-FI with automatic enricher circuit, four-36 mm throttle bodies, 8 holes per injector
    Ignition Computer-controlled digital with three-dimensional mapping and electronic advance
    General
    Speedometer
    Tachometer
    Odometer
    Colors Red
    Warranty Three Years: Unlimited Mileage
    Transmission
    Transmission Five-speed
    Final Drive Shaft

    Current Promotions

    There are currently no promotions available for this product.
