New Showcase » Honda » Gold Wing Audio/Comfort/Navi/XM/ABS
Model Quick Search

$25,699.00

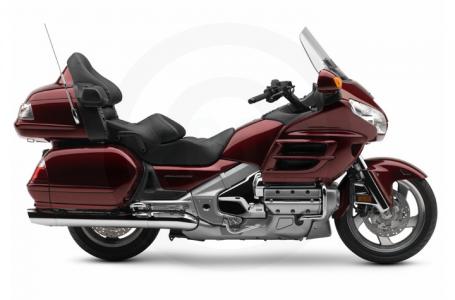

2009 Honda Gold Wing Audio/Comfort/Navi/XM/ABS
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The Gold Wing Premium Audio/Comfort/Navi/ABS model gets a performance boost, on top of the new TPMS and XM Radio systems, by way of an integrated anti-lock braking system (ABS) which helps maintain confidence in less than ideal riding conditions.

    ENGINE
    • Engine Type: 1832cc liquid-cooled horizontally opposed six-cylinder
    • Bore and Stroke: 74.0mm x 71.0mm
    • Induction: Programmed Fuel Injection (PGM-FI)
    • Ignition: Computer-controlled digital with three-dimensional mapping
    • Compression Ratio: 9.8:1
    • Valve Train: SOHC; two valves per cylinder
    DRIVE TRAIN
    • Transmission: Five-speed including overdrive, plus electric reverse
    • Final Drive: Shaft
    CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: 45mm cartridge fork with anti-dive system, 5.5-inch travel
    • Rear Suspension: Pro-Arm single-side swingarm with Pro-Link single shock with computer-controlled spring-preload adjustment with two memory presets; 4.1-inch travel
    • Front Brake: Dual full-floating 296 mm discs with LBS three-piston calipers
    • Rear Brake: Single ventilated 316 mm disc with LBS three-piston caliper
    • Front Tires: 130/70R-18
    • Rear Tires: 180/60R-16
    DIMENSIONS
    • Rake: 29.15 degrees
    • Trail: 109.0mm (4.3 inches)
    • Wheelbase: 66.5 inches
    • Seat Height: 29.1 inches
    • Curb Weight: 895 - 928 pounds, depending on option packages selected
    • Fuel Capacity: 6.6 gallons (Includes all standard equipment, required fluids and full tank of fuel—ready to ride.)
    FACTORY WARRANTY INFORMATION
    • Three Years: Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

    Specifications

    Engine
    Engine Type Horizontally opposed six-cylinder
    Displacement 1832 cc
    Bore and Stroke 74.0 x 71.0 mm
    Cooling Liquid-cooled
    Compression Ratio 9.8:1
    Fuel System Programmed Fuel Injection (PGM-FI)
    Ignition Computer-controlled digital with three-dimensional mapping
    Chassis
    Front Suspension 45 mm cartridge fork with anti-dive system; Travel 5.5 in.
    Front Brakes Dual full-floating 296 mm discs with LBS three-piston calipers
    Front Tire 130/70R-18
    Rear Suspension Pro-Arm single-side swingarm with Pro-Link single shock with computer-controlled spring-preload adjustment with two memory presets; Travel: 4.1 in.
    Rear Brakes Single ventilated 316 mm disc with LBS three-piston caliper
    Rear Tire 180/60R-16
    Dimensions
    Dry Weight 895 - 928 lbs.
    Fuel Capacity 6.6 gal. (Includes all standard equipment, required fluids and full tank of fuel—ready to ride)
    Wheelbase 66.5 in.
    Seat Height 29.1 in.
    Trail 4.3 in. (109.0 mm)
    Rake 29.15°
    Transmission
    Transmission Five-speed including overdrive, plus electric reverse
    Final Drive Shaft
    General
    Colors Candy Black Cherry, Pearl Yellow, Metallic Silver, Deep Blue Metallic, Metallic Titanium, [Metallic Blue, limited colors]
    Warranty Three Years: Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan

    Compare Models

    		 Print








    Year 2009
    Manufacturer Honda
    Model Gold Wing Audio/Comfort/Navi/XM/ABS
    Style Sport Touring
    MSRP* $25,699.00
    Chassis
    Front Suspension 45 mm cartridge fork with anti-dive system; Travel 5.5 in.
    Front Brakes Dual full-floating 296 mm discs with LBS three-piston calipers
    Front Tire 130/70R-18
    Rear Suspension Pro-Arm single-side swingarm with Pro-Link single shock with computer-controlled spring-preload adjustment with two memory presets; Travel: 4.1 in.
    Rear Brakes Single ventilated 316 mm disc with LBS three-piston caliper
    Rear Tire 180/60R-16
    Dimensions
    Dry Weight 895 - 928 lbs.
    Fuel Capacity 6.6 gal. (Includes all standard equipment, required fluids and full tank of fuel—ready to ride)
    Wheelbase 66.5 in.
    MPG
    Seat Height 29.1 in.
    Trail 4.3 in. (109.0 mm)
    Rake 29.15°
    Engine
    Engine Type Horizontally opposed six-cylinder
    Displacement 1832 cc
    Bore and Stroke 74.0 x 71.0 mm
    Cooling Liquid-cooled
    Compression Ratio 9.8:1
    Fuel System Programmed Fuel Injection (PGM-FI)
    Ignition Computer-controlled digital with three-dimensional mapping
    General
    Speedometer
    Tachometer
    Odometer
    Colors Candy Black Cherry, Pearl Yellow, Metallic Silver, Deep Blue Metallic, Metallic Titanium, [Metallic Blue, limited colors]
    Warranty Three Years: Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan
    Transmission
    Transmission Five-speed including overdrive, plus electric reverse
    Final Drive Shaft

    Current Promotions

    There are currently no promotions available for this product.
